Granular media filtration

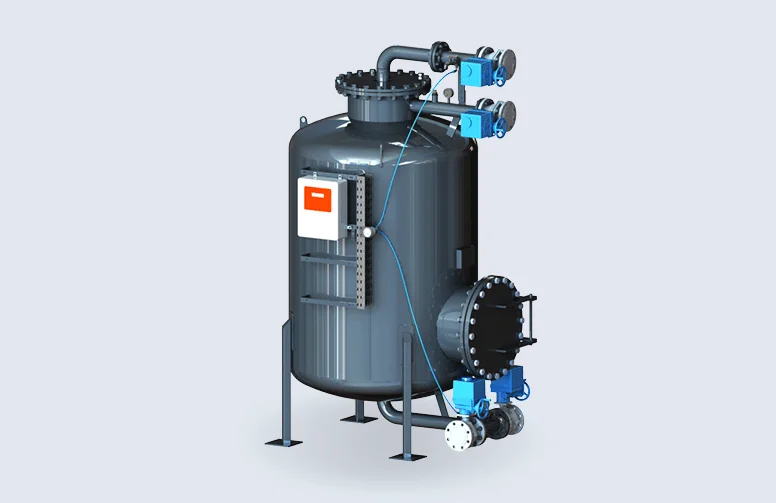

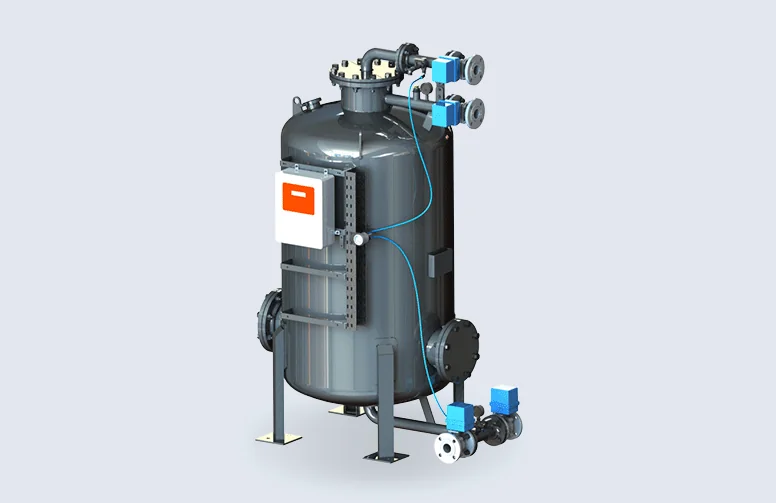

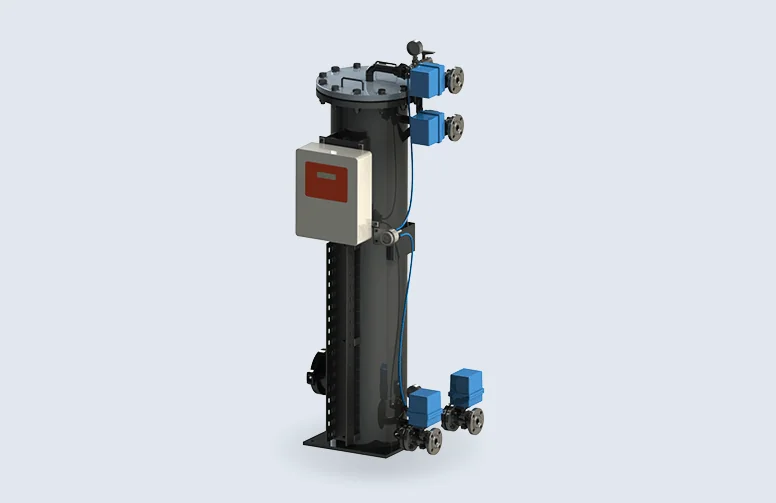

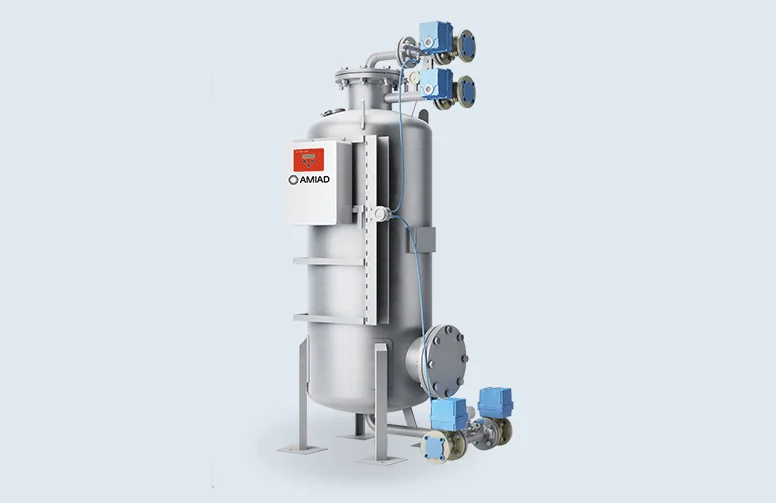

Amiad DVF Series
Manufacturer: Amiad
Country: Israel
Amiad DVF Series is a range of Double Vortex multi-media filters for fine industrial water treatment. A special double-vortex inlet creates rotational flow and improves fine-particle removal through the media bed.
The vessel is manufactured from stainless steel. Vortex hydrodynamics extend filtration cycles and improve resistance to microbiological fouling, while filtration is achieved without chemical addition.
Series flow is up to 50 m³/h. With the appropriate media configuration, filtration performance can reach approximately 1 micron; minimum operating pressure is 1 bar.
Specifications
| Technology | Multi-media |
|---|---|
| Type | Automatic |
| Maximum flow | 50 m³/h |
| Filtration performance | Down to ~1 micron depending on media |
| Vessel material | Stainless steel |
| Minimum operating pressure | 1 bar |
| Flow technology | Double Vortex |
