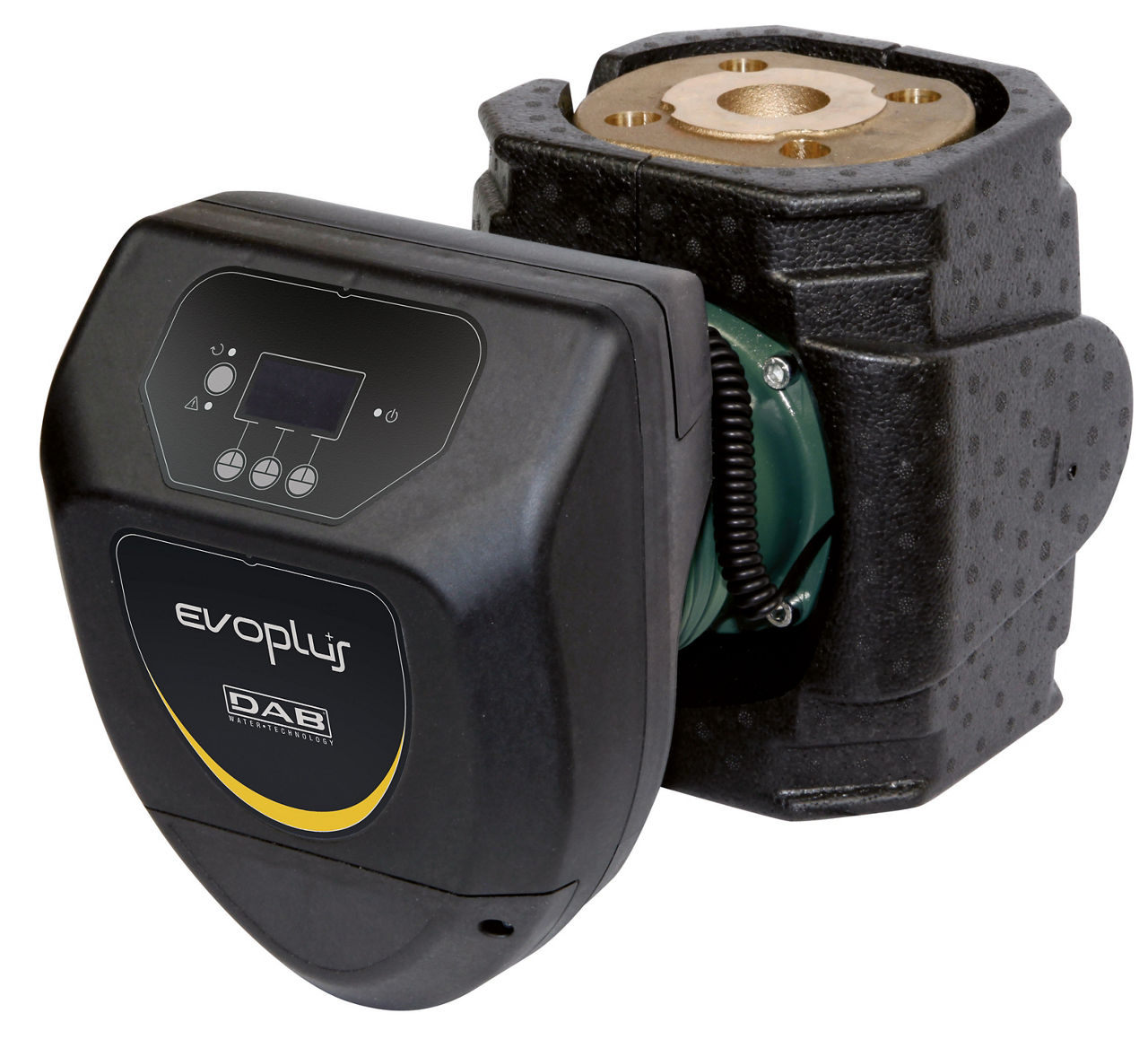

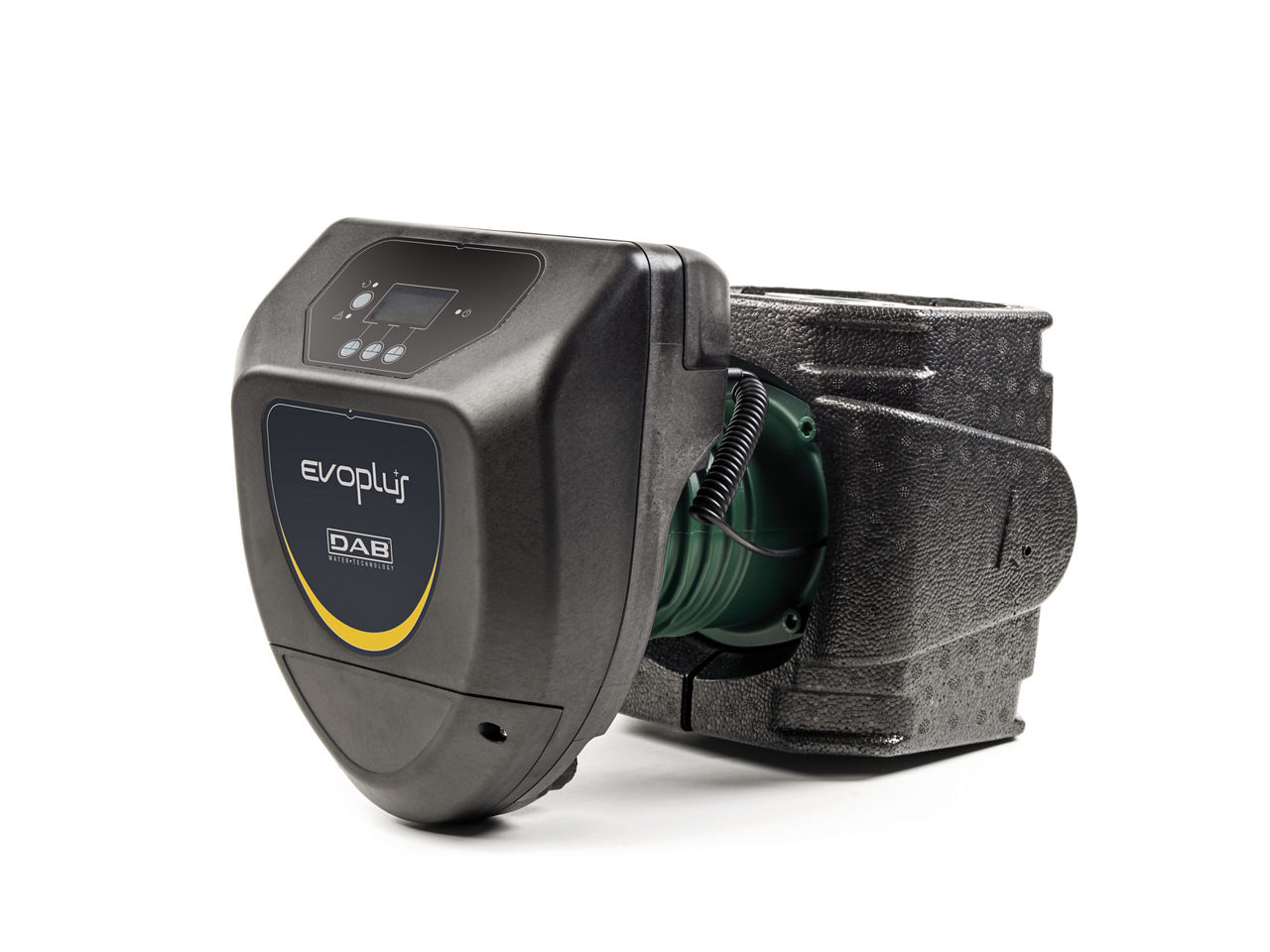

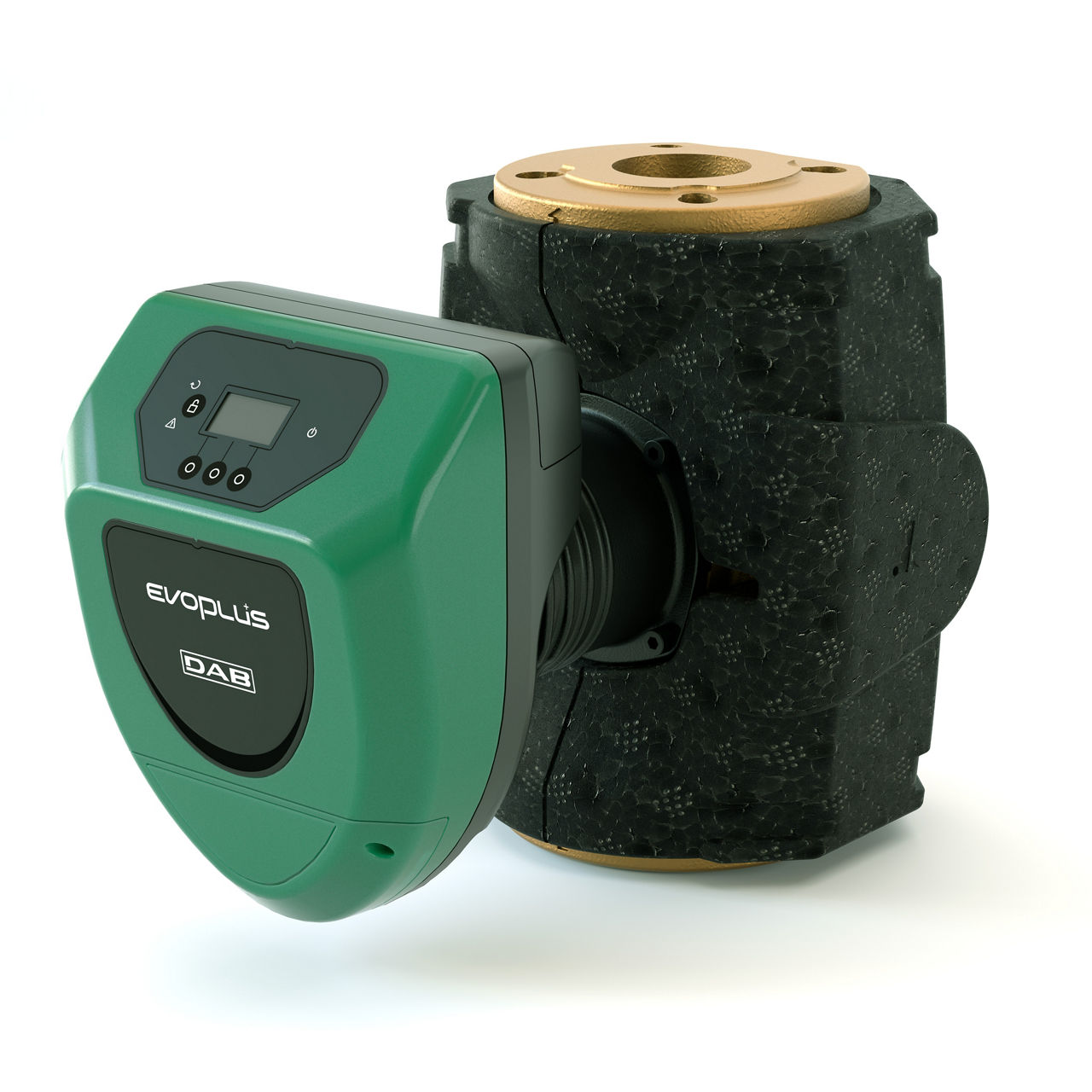

DAB EVOPLUS
Manufacturer: DAB Pumps
Country: Italy
DAB EVOPLUS is a range of variable-speed electronic wet-rotor circulators. The equipment is intended for central heating and air-conditioning systems in commercial buildings.
The variable-frequency drive adjusts speed to actual load and the user interface provides six operating modes.

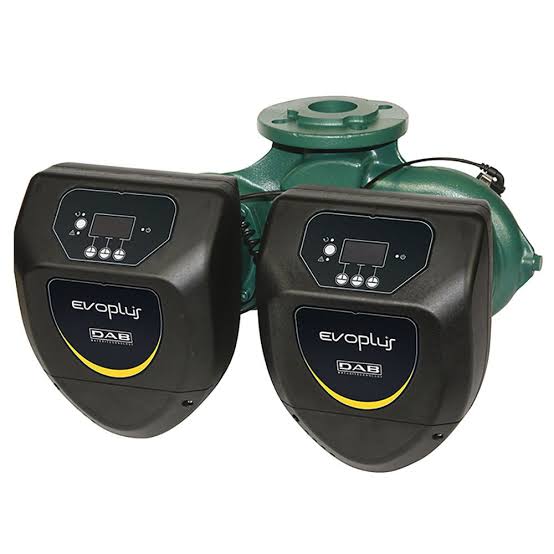

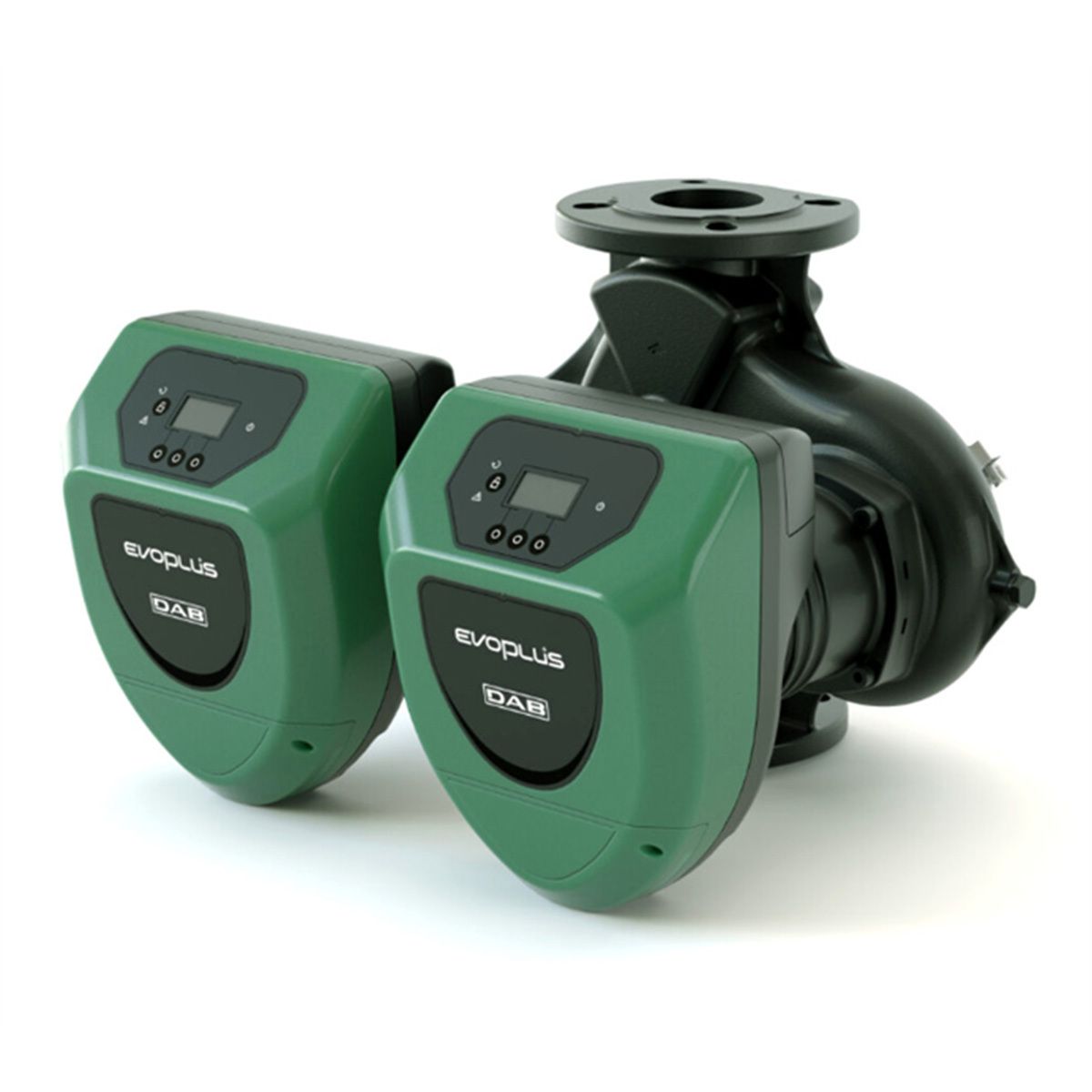

Pumps are available in flanged single and twin versions. Cataphoresis treatment improves oxidation resistance, enhanced insulation between motor and electronics reduces condensation risk, and remote control through DConnect is supported.
Specifications
| Type | Electronic wet-rotor circulator |
|---|---|
| Control | Integrated variable-frequency drive |
| Versions | Flanged; single and twin |
| Operating range, single | 3–75.6 m³/h |
| Operating range, twin | 3–147 m³/h |
| Maximum head | Up to 18 m |
| Liquid temperature | −10…+110 °C |
| Maximum working pressure | 16 bar |
| Flange connections | DN32–DN100; pressure class depends on size |
| Maximum ambient temperature | +40 °C |
| Protection rating | IP44 |
| Standard voltage | 1~ 220–240 V, 50/60 Hz |
