Circulation pumps

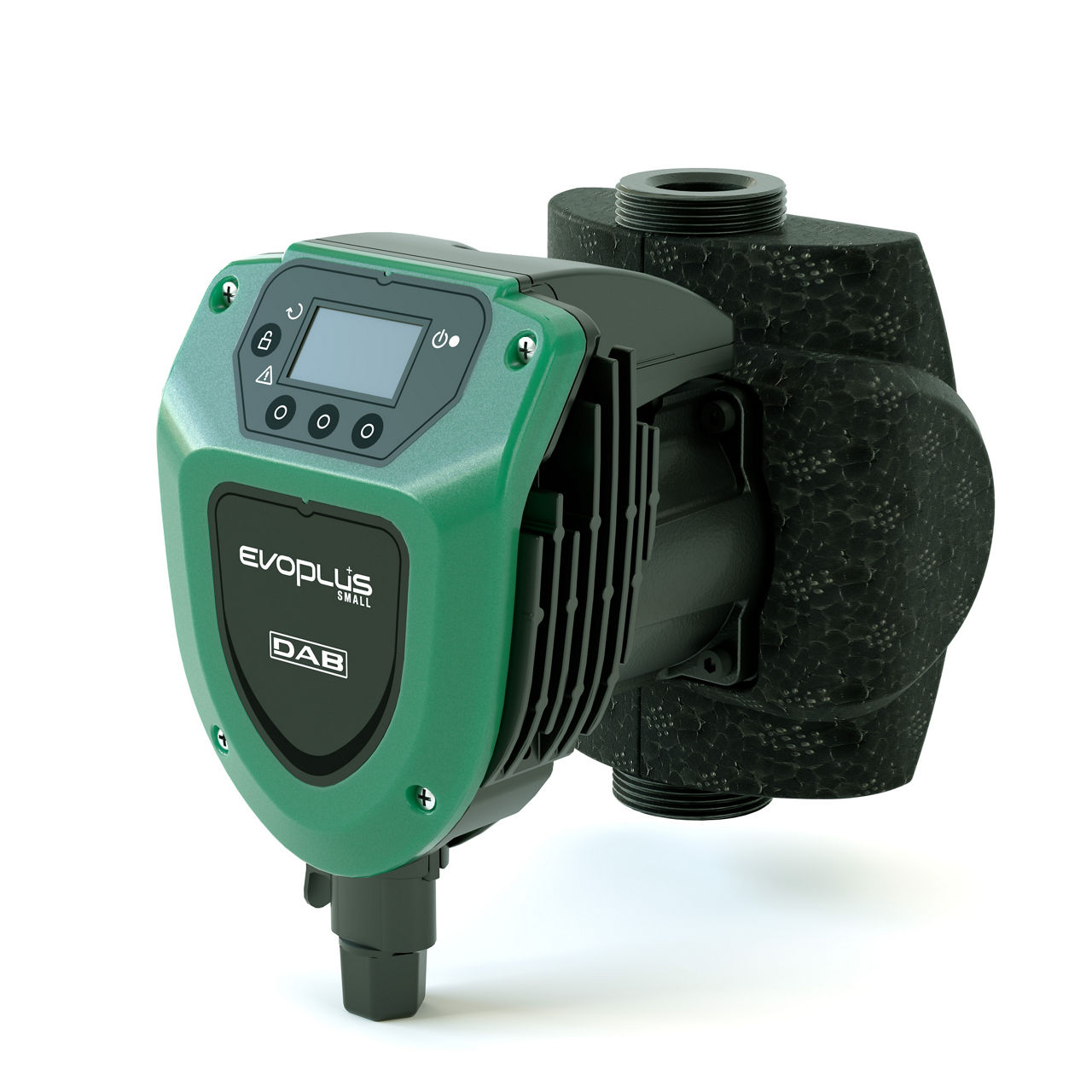

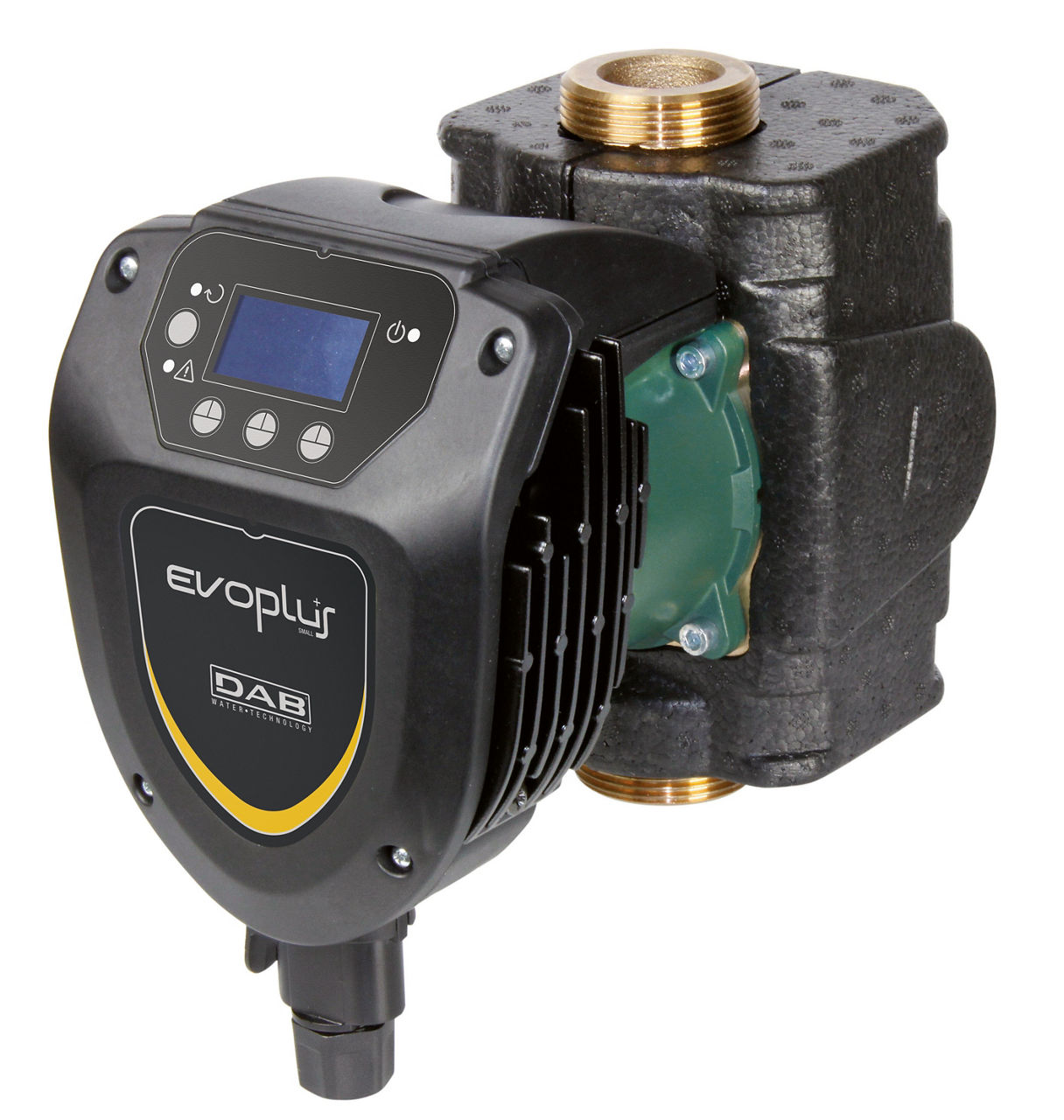

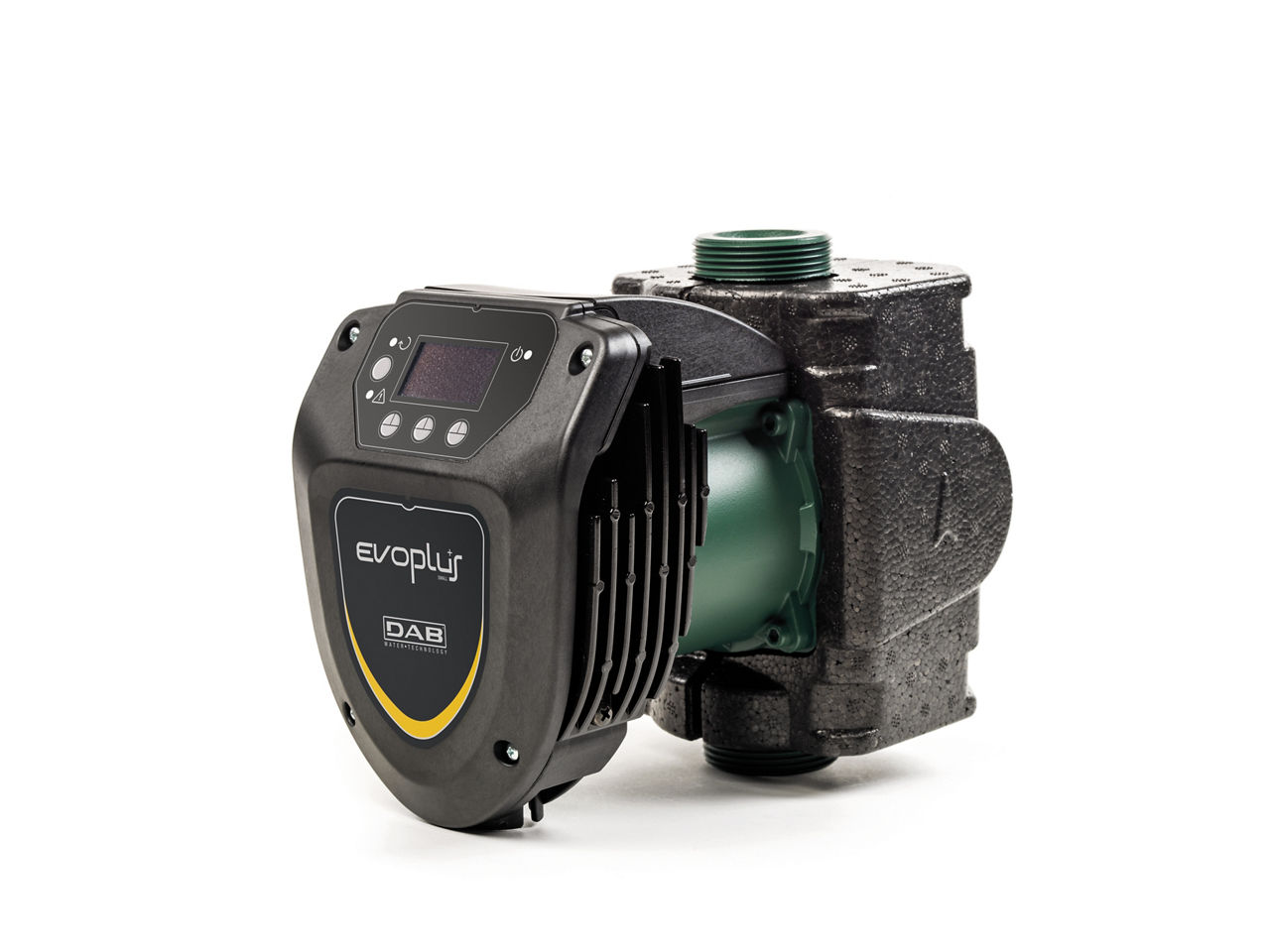

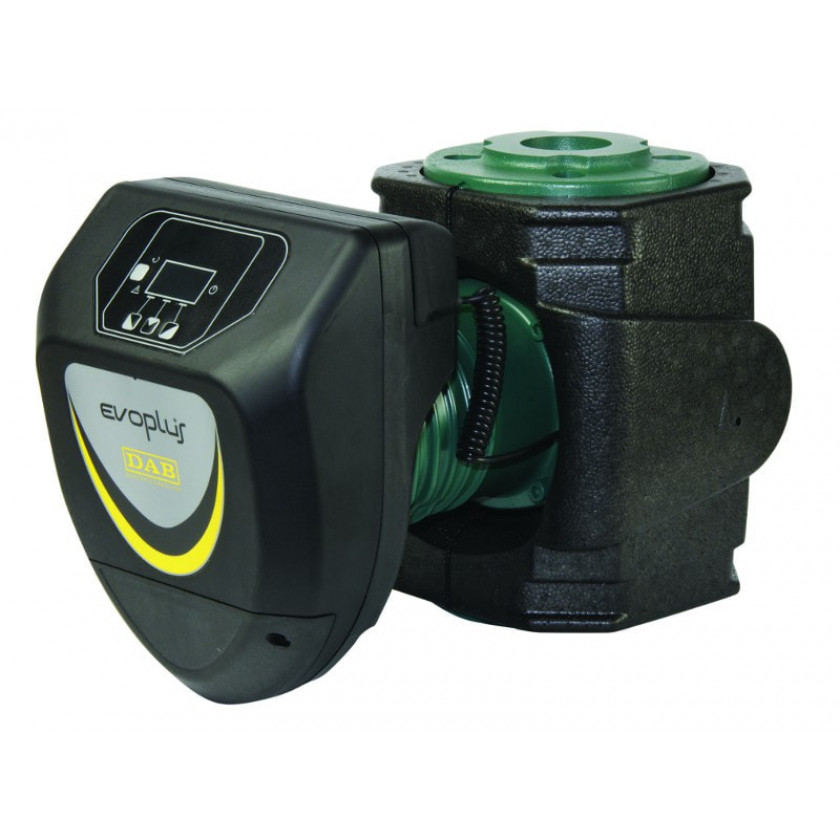

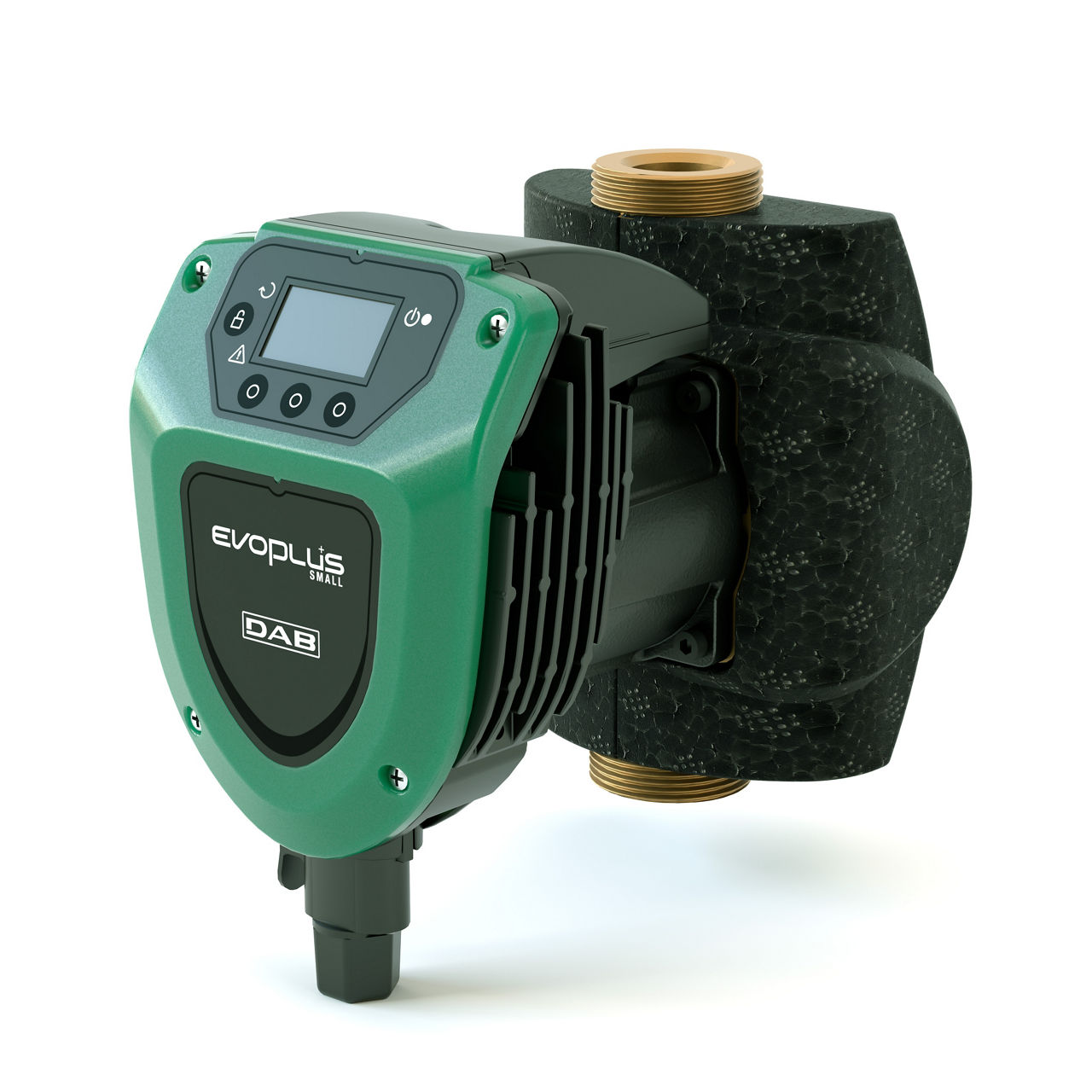

DAB EVOPLUS Small
Manufacturer: DAB Pumps
Country: Italy
DAB EVOPLUS Small is a range of electronic wet-rotor circulators with integrated variable-frequency drive. The equipment is intended for heating, ventilation and air conditioning in residential and commercial buildings.
The integrated variable-frequency drive adjusts speed to actual system demand, reducing unnecessary energy use and hydraulic noise. The range reaches 12 m³/h and 11 m head; liquid temperature is −10 to +110 °C.

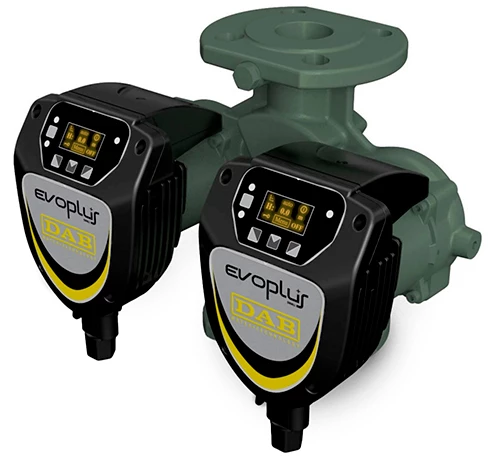

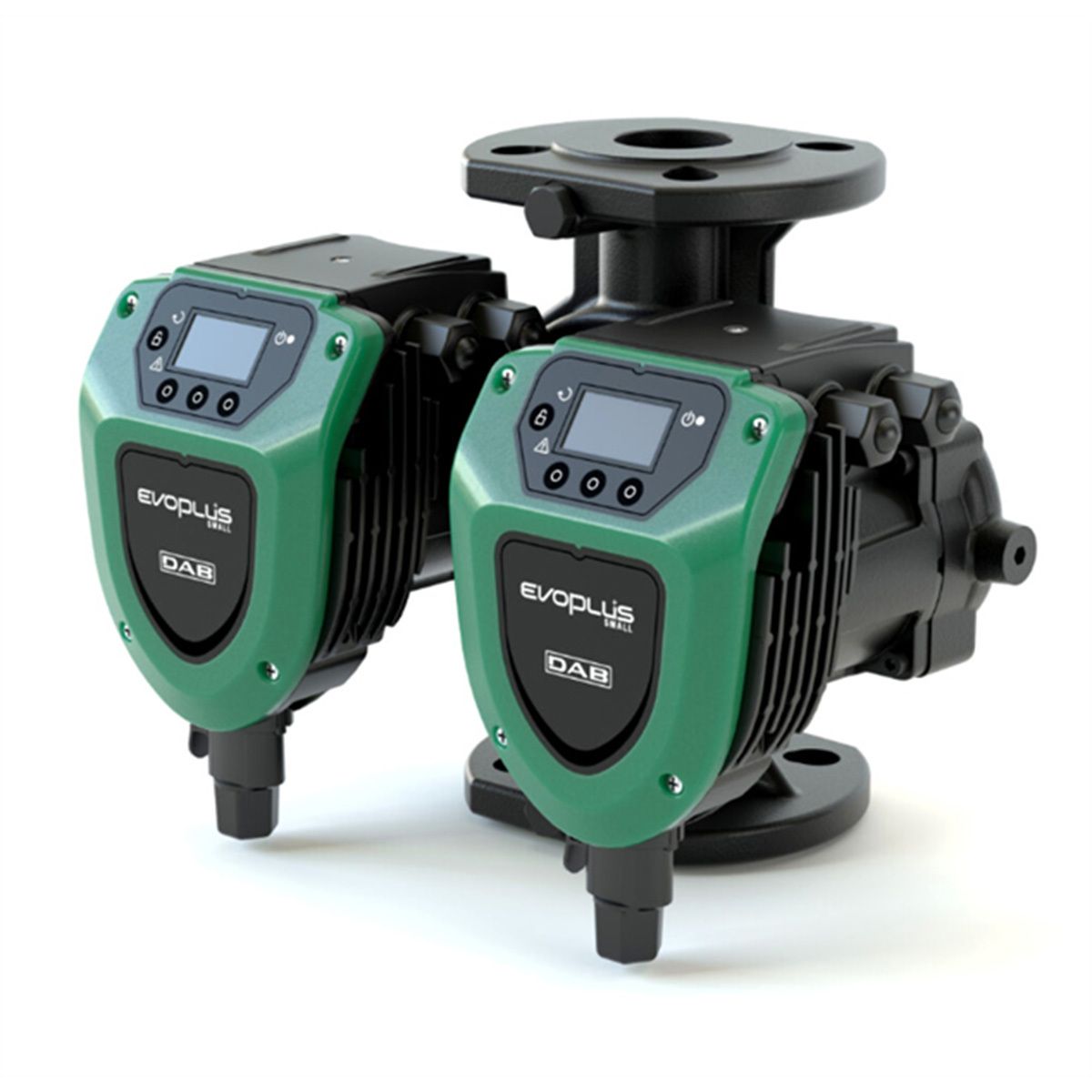

Supply is 1×230 V, 50/60 Hz and protection IPX4. Threaded/flanged and single/twin versions are available.
Specifications
| Maximum flow | Up to 12 m³/h |
|---|---|
| Maximum head | Up to 11 m |
| Liquid temperature | −10…+110 °C |
| Control | Integrated variable-frequency drive |
| Power supply | 1×230 V, 50/60 Hz |
| Protection degree | IPX4 |
| Insulation class | F |
| Maximum ambient temperature | +40 °C |
