Compact mechanical treatment plants
FSM Compact Plant KSF-L
Manufacturer: FSM Frankenberger GmbH
Country: Germany

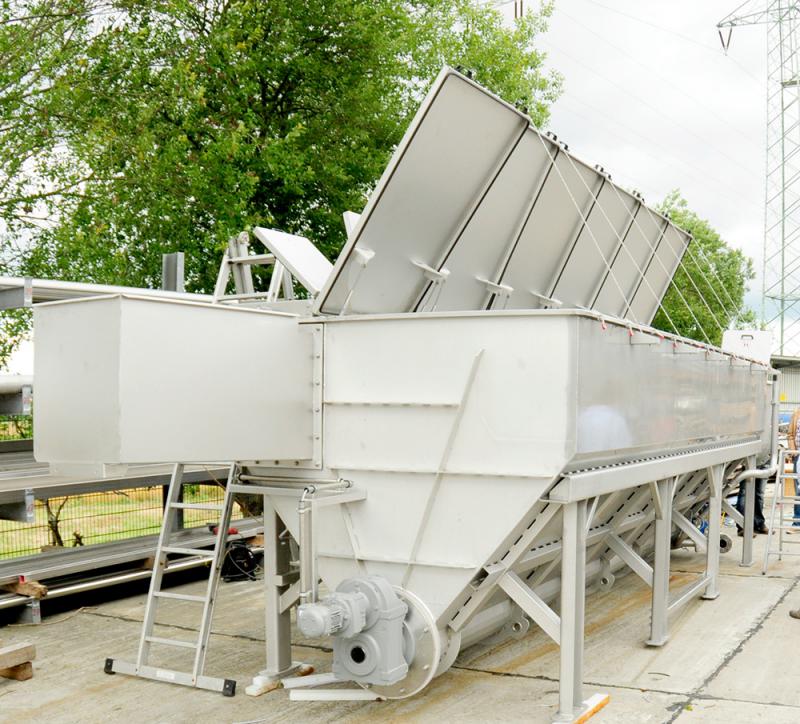

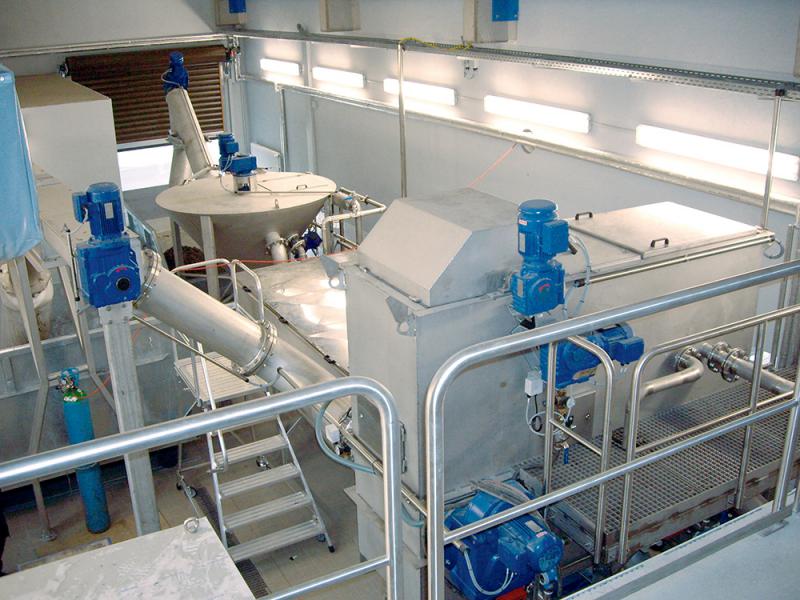

FSM Compact Plant KSF-L is a compact mechanical treatment plant for larger wastewater flows. It combines screening and screenings dewatering, grease separation and a non-aerated lamella grit chamber.

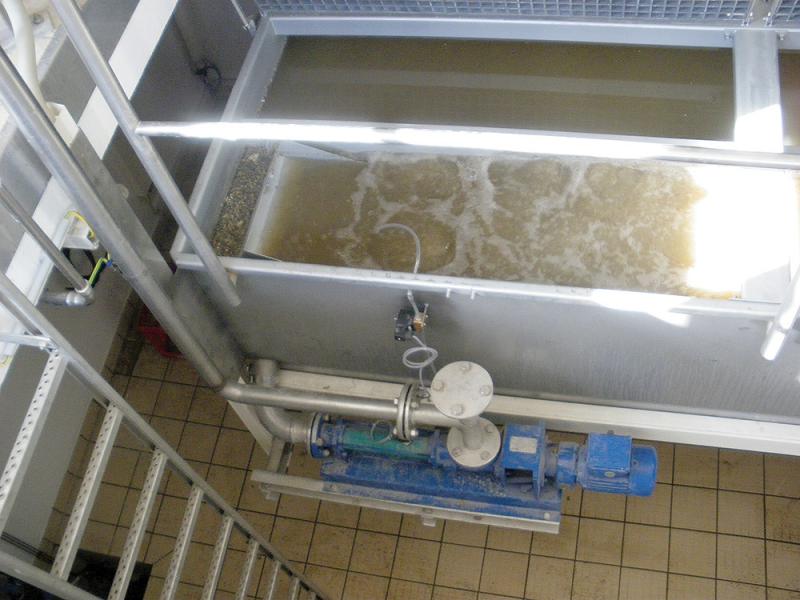

A grease chamber ahead of the grit section uses fine-bubble aeration. Mineral particles are separated in the lamella grit chamber without additional aeration energy and conveyed by screw.
KSF-L is used at municipal and industrial facilities, including food-processing pretreatment and septage reception. An emergency bypass can be integrated.
Specifications
| Equipment type | Compact mechanical treatment plant |
|---|---|
| Throughput range | 100–200 l/s |
| Grit chamber | Non-aerated lamella; designed to DWA standards |
| Grease separation | With fine-bubble aeration |
| Grit conveying | Spiral conveyor to grit pump or screw classifier |
| Emergency bypass | Available |
| Published total-area examples | 13.8–29.75 m² for 100–200 l/s |
