Grit treatment
FSM Grit Receiving Station
Manufacturer: FSM Frankenberger GmbH
Country: Germany

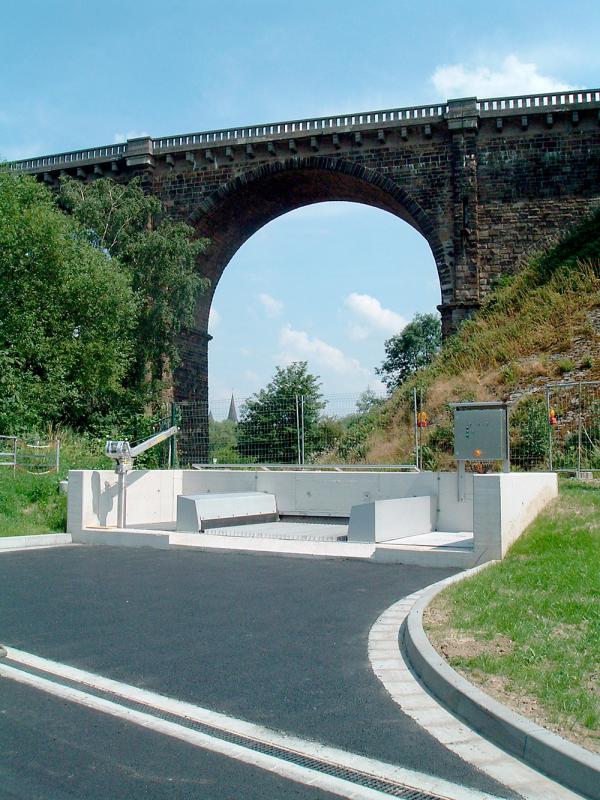

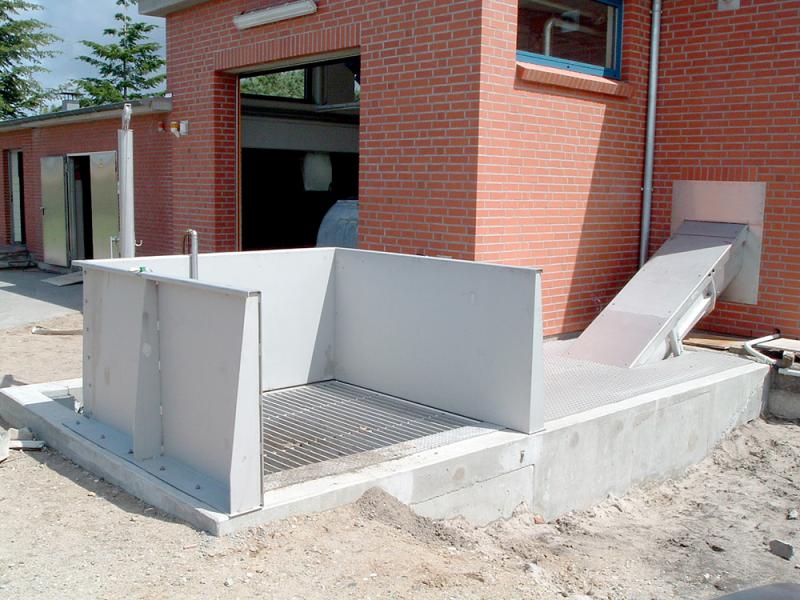

FSM Grit Receiving Station is a complete receiving system for road sweepings, sewer grit and other mineral waste. The plant layout is engineered for material composition and required capacity.

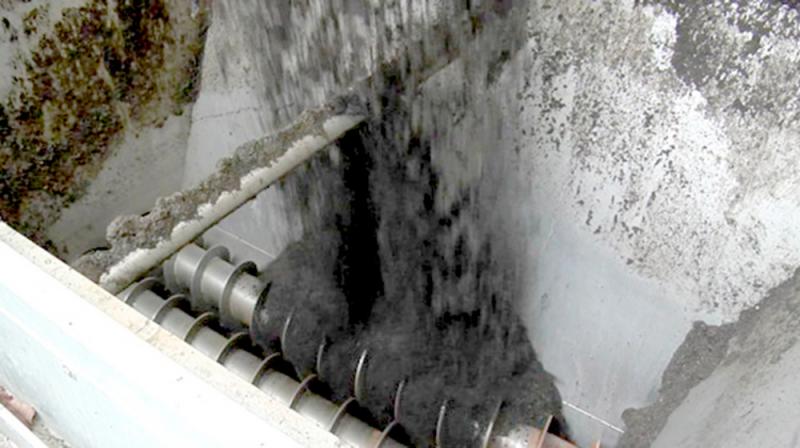

The basic system includes a receiving bunker with screening grid, screw conveying and downstream grit washing. An optional drum screen can remove coarse material from road sweepings before the grit fraction proceeds to washing.
The station separates organic and mineral components and produces washed grit to the required quality. It is suitable for municipal sewer systems and centralized grit-waste treatment.
Specifications
| Equipment type | Grit receiving station |
|---|---|
| Accepted material | Sewer grit and road sweepings |
| Throughput | On request |
| Organic content of grit | < 3% volatile solids |
| Separating capacity | >95% of 0.2 mm particles |
| Frame and agitator material | SS304 or SS316; other materials on request |
| Conveyor screw material | Special steel / SS304 / SS316 |
| Drive | SEW geared motor |
