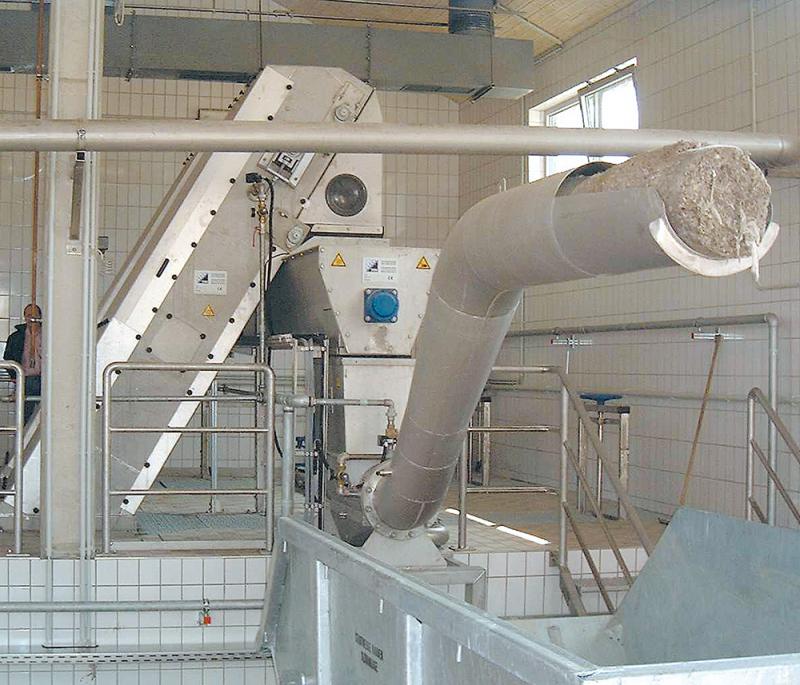

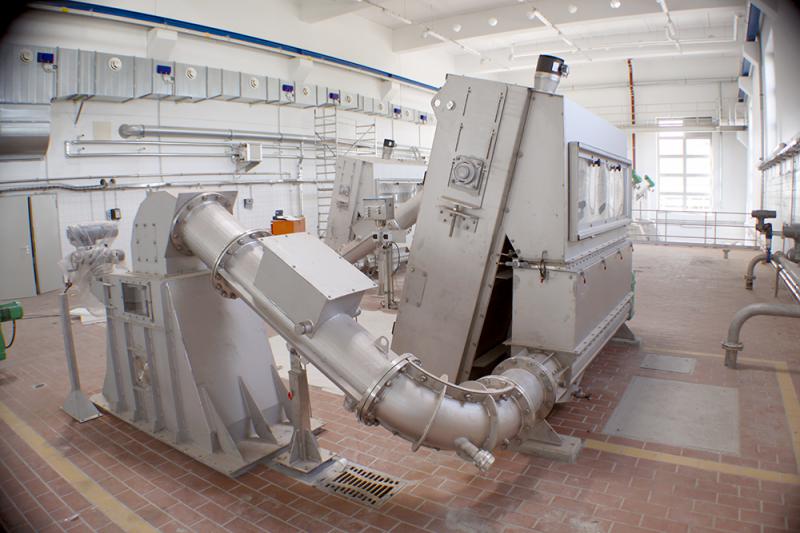

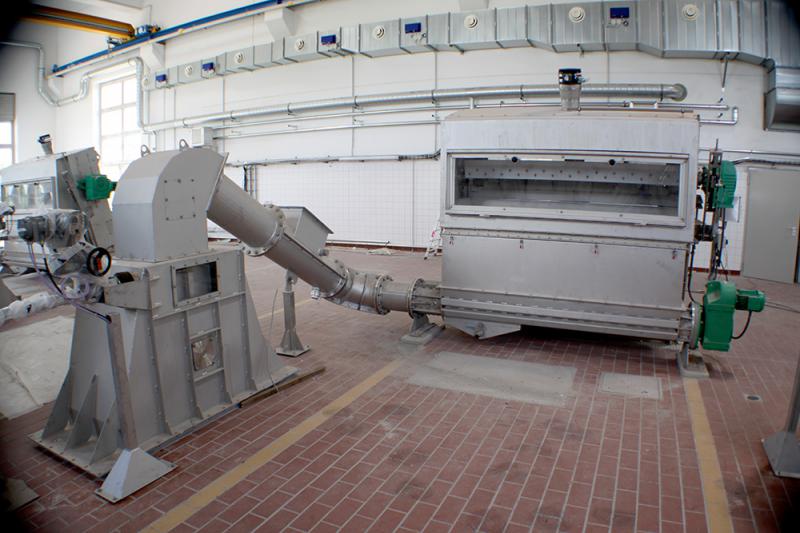

FSM Screening Washing Press
Manufacturer: FSM Frankenberger GmbH
Country: Germany
FSM Screening Washing Press is a screw wash press for hygienic handling of screenings. It conveys, washes, dewaters and compacts wet material before disposal.
Screenings enter a hopper and are moved by a screw through washing and pressing zones. Organic matter is washed out and returned with wash water to the process.
FSM offers three principal sizes with 200, 300 and 350 mm screw diameters. An optional backpressure device can increase dry-solids content.
Specifications
| Equipment type | Screenings washing press |
|---|---|
| Screw diameter | 200 / 300 / 350 mm |
| Throughput | Up to 10 m³/h |
| Dry solids | >40% |
| With backpressure | >50% dry solids |
| Fecal matter washout | More than 95% |
| Volume/weight reduction | 65–85% |
