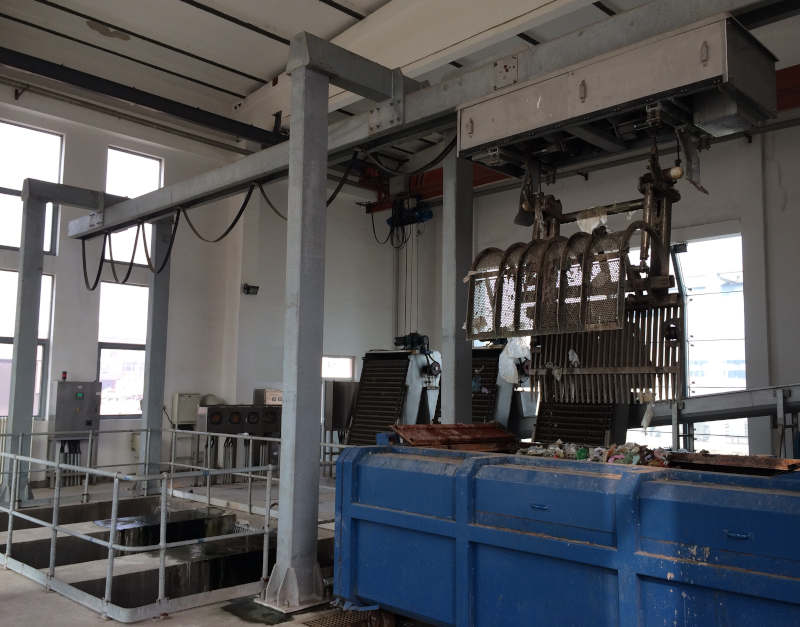

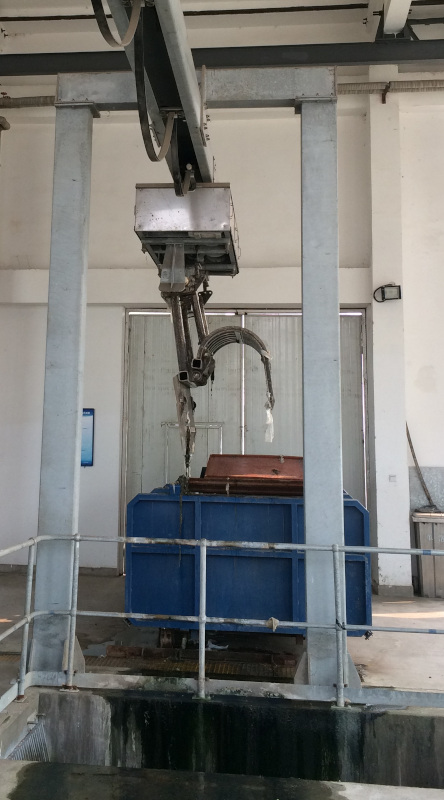

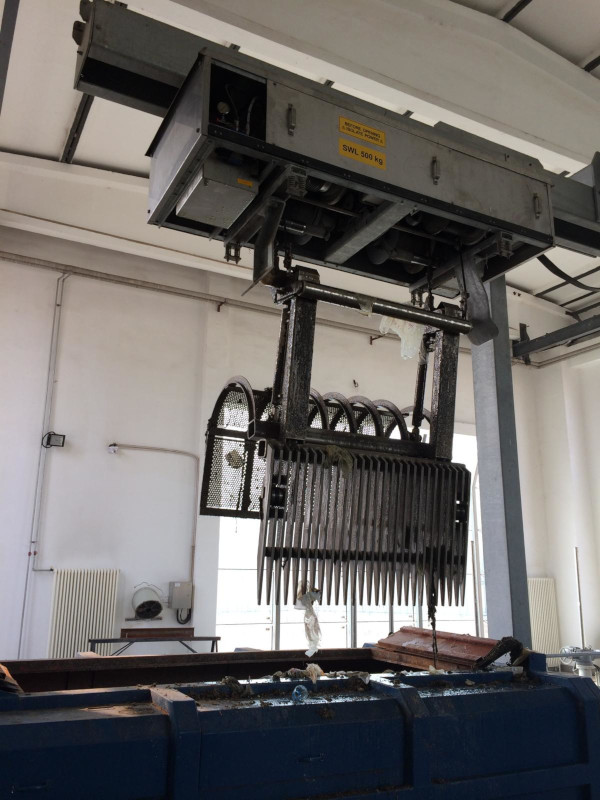

FSM Trash Rack Screen
Manufacturer: FSM Frankenberger GmbH
Country: Germany
FSM Trash Rack Screen is a mechanically cleaned coarse rack for large channels and water-intake structures. It serves as an initial protection stage ahead of pumps, fine screens and other sensitive equipment.
The bar field retains large floating and transported debris. The cleaning mechanism removes accumulated material and carries it to the discharge point.
The screen is used at municipal and industrial treatment plants, intakes and pumping stations. Dimensions and materials are selected for the project.
Specifications
| Equipment type | Coarse trash rack |
|---|---|
| Screen width | 800–20,000 mm; larger widths on request |
| Channel depth | Up to 70 m; greater depths on request |
| Gap width | 20–200 mm; other sizes on request |
| Mounting angle | 75° or 90°; other angles on request |
| Materials | Galvanized steel / SS304 / SS316; other materials on request |
| Seawater/brackish-water option | Seawater-resistant materials on request |
