HUBER Pumping Stations Screen ROTAMAT® RoK4

HUBER Pumping Stations Screen ROTAMAT® RoK4 is designed for vertical or near-vertical screening in a chamber, tank or pumping-station inlet. It protects pumps and downstream equipment from screenings.

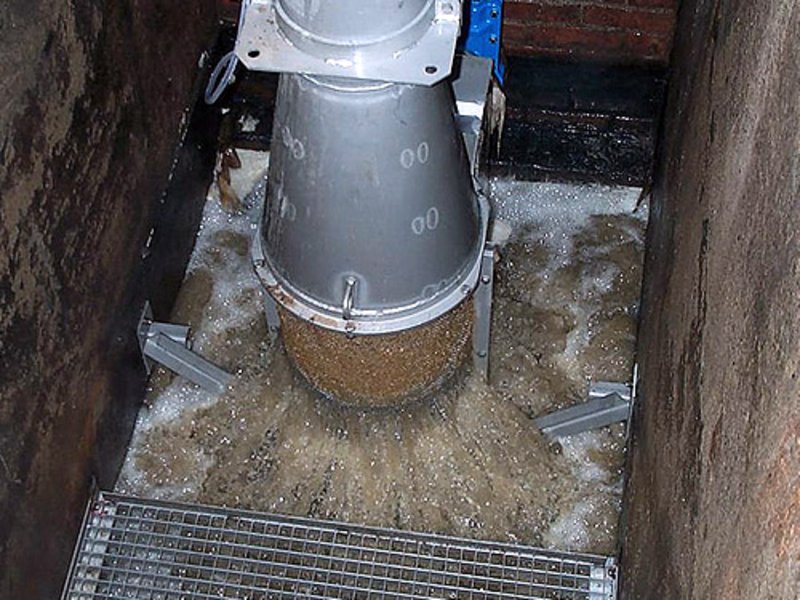

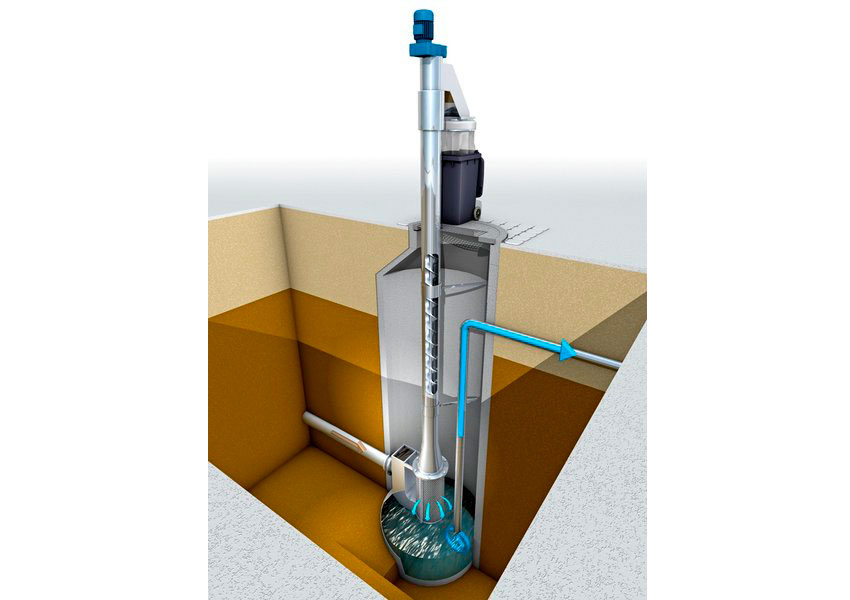

Wastewater reaches the lower screening zone, where screenings are retained. An integrated screw lifts the retained material upward through the housing to the discharge point.

Depending on the configuration, the system can include additional screenings-treatment operations. RoK4 is different from a horizontal drum screen: its duty is linked to pumping stations and vertical lifting of material.

• vertical screen for pumping-station inlets and chambers;

• screenings transport by an integrated screw;

• protection of pumps and downstream equipment.

Bar spacing or perforation, installation depth, discharge height and housing variant depend on the selected configuration and site conditions.
