HUBER Coanda Grit Classifier RoSF3

HUBER Coanda Grit Classifier RoSF3 separates mineral particles from a water-grit mixture and statically dewaters them. Unlike RoSF4, the main duty of RoSF3 is grit classification and removal rather than intensive organic washing.

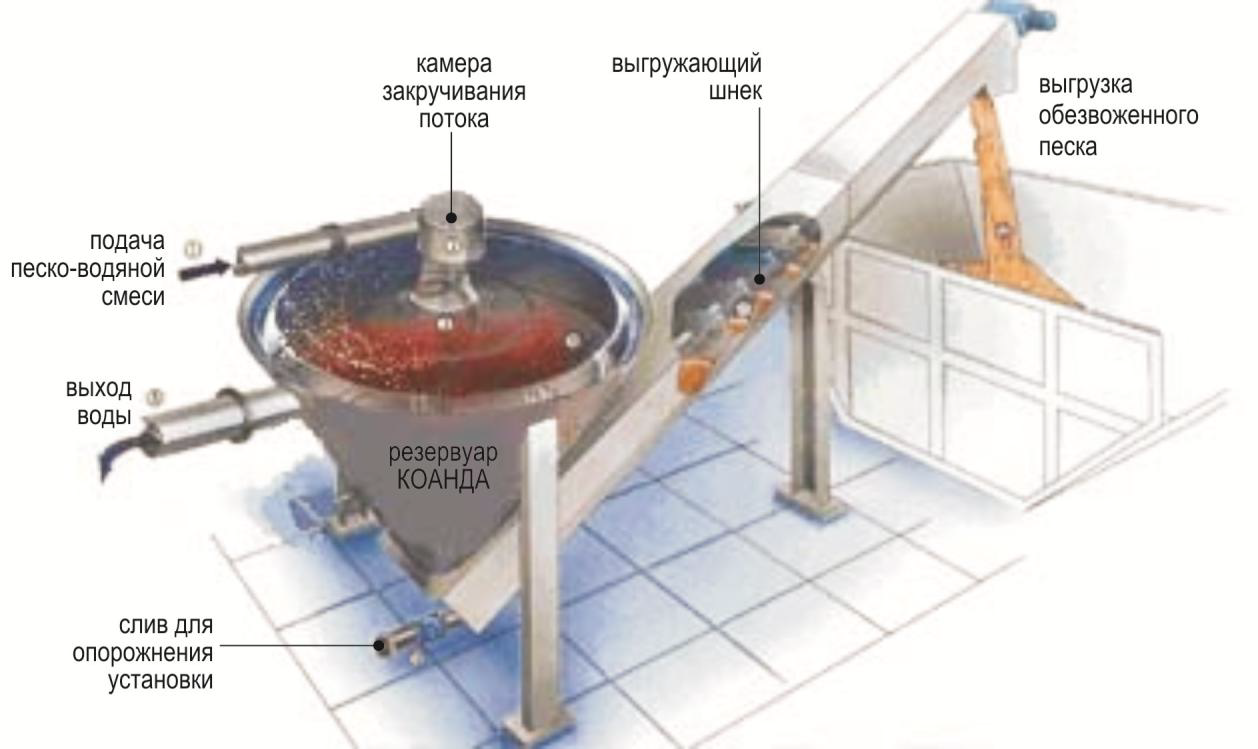

The flow enters the separation zone, where mineral particles settle and collect in the lower part of the unit. A screw or discharge assembly then lifts the grit and allows water to drain before discharge.

• separation of grit from a liquid flow;

• static dewatering of classified material;

• discharge of grit to a container or conveyor.

RoSF3 size and separation result depend on flow, density and grain size of the mineral particles and installation conditions.
