Reverse-osmosis system with antiscalant dosing unit by the Israeli company ODIS
Capacity: 50 m³/h.
Location: Sady Pridonya OJSC, Volgograd. Production of juices, nectars and food for infants.
The system consists of the following units:
1. Group of model 50830-V3-6 sand traps;
Quantity — 6 units.

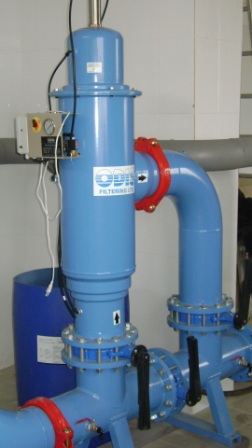

2. Model 85108PVC hydraulically controlled filter;
Filtration rating — 50 microns;
Quantity — 1 unit.

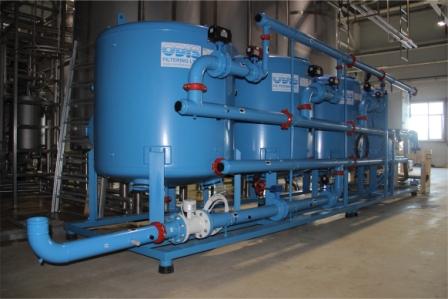

3. Model 45056DW multimedia filter block;
Quantity — 4 units.
4. Antiscalant dosing station;
Flow rate — 0.6 L/h;
Quantity — 1 unit.
5. Cartridge-filter housing block;
Filtration rating — 5 microns;
Number of housings — 2;
Number of cartridges — 20.
6. Grundfos high-pressure pumping station;
Quantity — 1 unit.

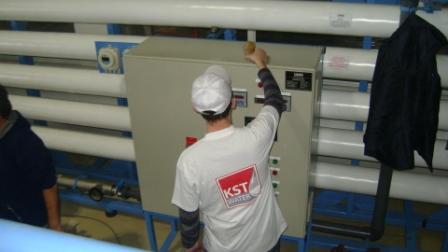

7. Reverse-osmosis unit;
Number of pressure vessels — 8;
Vessel diameter — 8";
Number of reverse-osmosis membranes — 56.
